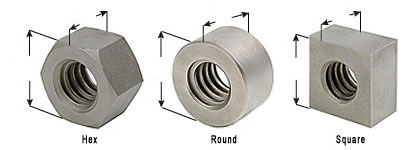

Steel & Stainless Steel Nuts - Part Numbers & Dimensions

ARow
BThread Size
(dia.-TPI)
CMajor Diameter
(in.)
DLead
(in/.rev.)
EProduct Line
FHand
GMaterial
HStyle
IWidth Across
Flats
(in.)
JOutside
Diameter
(in.)
KOverall Length
(in.)
LPart Number
$Prices & Products
1/4 - 160.2500.063AcmeRHSteelRound0.0000.5000.25089713Mates
1/4 - 160.2500.063AcmeRHSteelSquare0.5000.0000.25089714Mates
1/4 - 160.2500.063AcmeRHSteelHex0.5000.0000.25089715Mates
1/4 - 160.2500.063AcmeLHSteelRound0.0000.5000.25089718Mates
1/4 - 160.2500.063AcmeLHSteelSquare0.5000.0000.25089719Mates
1/4 - 160.2500.063AcmeLHSteelHex0.5000.0000.25089720Mates
1/4 - 160.2500.063AcmeRHStainless SteelHex0.5000.0000.25090424Mates
3/8 - 160.3750.063AcmeRHSteelHex0.6880.0000.37591294Mates
3/8 - 160.3750.063AcmeLHSteelHex0.6880.0000.37591295Mates
3/8 - 120.3750.083AcmeRHSteelRound0.0000.6880.37589611Mates
3/8 - 120.3750.083AcmeRHSteelSquare0.6880.0000.37589612Mates
3/8 - 120.3750.083AcmeRHSteelHex0.6880.0000.37589613Mates
3/8 - 120.3750.083AcmeLHSteelRound0.0000.6880.37589616Mates
3/8 - 120.3750.083AcmeLHSteelSquare0.6880.0000.37589617Mates
3/8 - 120.3750.083AcmeLHSteelHex0.6880.0000.37589618Mates
3/8 - 120.3750.083AcmeRHStainless SteelHex0.6880.0000.37590426Mates
3/8 - 120.3750.083AcmeLHStainless SteelHex0.6880.0000.37590427Mates
1/2 - 100.5000.100AcmeRHSteelRound0.0000.8750.50089404Mates
1/2 - 100.5000.100AcmeRHSteelSquare0.8750.0000.50089405Mates
1/2 - 100.5000.100AcmeRHSteelHex0.8750.0000.50089406Mates
1/2 - 100.5000.100AcmeLHSteelRound0.0000.8750.50089498Mates
1/2 - 100.5000.100AcmeLHSteelSquare0.8750.0000.50089499Mates
1/2 - 100.5000.100AcmeLHSteelHex0.8750.0000.50089500Mates
1/2 - 100.5000.100AcmeRHStainless SteelHex0.8750.0000.50090428Mates
5/8 - 100.6250.100AcmeRHSteelHex1.0630.0000.62591176Mates
5/8 - 100.6250.100AcmeLHSteelHex1.0630.0000.62591177Mates
5/8 - 80.6250.125AcmeRHSteelRound0.0001.1250.62589408Mates
5/8 - 80.6250.125AcmeRHSteelSquare1.1250.0000.62589409Mates
5/8 - 80.6250.125AcmeRHSteelHex1.1250.0000.62589410Mates
5/8 - 80.6250.125AcmeLHSteelRound0.0001.1250.62589493Mates
5/8 - 80.6250.125AcmeLHSteelSquare1.1250.0000.62589494Mates
5/8 - 80.6250.125AcmeLHSteelHex1.1250.0000.62589495Mates
5/8 - 80.6250.125AcmeRHStainless SteelHex1.0630.0000.62590430Mates
3/4 - 100.7500.100AcmeRHSteelHex1.2500.0000.75091280Mates
3/4 - 100.7500.100AcmeLHSteelHex1.2500.0000.75091281Mates
3/4 - 80.7500.125AcmeRHSteelRound0.0001.2500.75089676Mates
3/4 - 80.7500.125AcmeRHSteelSquare1.2500.0000.75089678Mates
3/4 - 80.7500.125AcmeRHSteelHex1.2500.0000.75089679Mates
3/4 - 80.7500.125AcmeLHSteelRound0.0001.2500.75089681Mates
3/4 - 80.7500.125AcmeLHSteelSquare1.2500.0000.75089683Mates
3/4 - 80.7500.125AcmeLHSteelHex1.2500.0000.75089684Mates
3/4 - 60.7500.167AcmeRHSteelRound0.0001.2500.75089519Mates
3/4 - 60.7500.167AcmeRHSteelSquare1.2500.0000.75089521Mates
3/4 - 60.7500.167AcmeRHSteelHex1.2500.0000.75089522Mates
3/4 - 60.7500.167AcmeLHSteelRound0.0001.2500.75089524Mates
3/4 - 60.7500.167AcmeLHSteelSquare1.2500.0000.75089526Mates
3/4 - 60.7500.167AcmeLHSteelHex1.2500.0000.75089527Mates
3/4 - 60.7500.167AcmeRHStainless SteelHex1.2500.0000.75090434Mates
3/4 - 5 STUB0.7500.200AcmeRHSteelRound0.0001.2500.75089412Mates
3/4 - 5 STUB0.7500.200AcmeRHSteelSquare1.2500.0000.75089413Mates
3/4 - 5 STUB0.7500.200AcmeRHSteelHex1.2500.0000.75089414Mates
3/4 - 5 STUB0.7500.200AcmeLHSteelRound0.0001.2500.75089416Mates
3/4 - 5 STUB0.7500.200AcmeLHSteelSquare1.2500.0000.75089417Mates
3/4 - 5 STUB0.7500.200AcmeLHSteelHex1.2500.0000.75089418Mates
3/4 - 50.7500.200AcmeRHSteelRound0.0001.2500.75089628Mates
3/4 - 50.7500.200AcmeRHSteelSquare1.2500.0000.75089630Mates
3/4 - 50.7500.200AcmeRHSteelHex1.2500.0000.75089631Mates
3/4 - 50.7500.200AcmeLHSteelRound0.0001.2500.75089633Mates
3/4 - 50.7500.200AcmeLHSteelSquare1.2500.0000.75089635Mates
3/4 - 50.7500.200AcmeLHSteelHex1.2500.0000.75089636Mates
3/4 - 50.7500.200AcmeRHStainless SteelHex1.2500.0000.75090432Mates
7/8 - 60.8750.167AcmeRHSteelHex1.4380.0000.87590360Mates
7/8 - 60.8750.167AcmeLHSteelHex1.4380.0000.87590361Mates
7/8 - 50.8750.200AcmeRHSteelHex1.4380.0000.87590170Mates
7/8 - 50.8750.200AcmeLHSteelHex1.4380.0000.87590173Mates
1 - 101.0000.100AcmeRHSteelRound0.0001.7501.00089639Mates
1 - 101.0000.100AcmeRHSteelSquare1.7500.0001.00089640Mates
1 - 101.0000.100AcmeRHSteelHex1.6250.0001.00089641Mates
1 - 101.0000.100AcmeLHSteelRound0.0001.7501.00089644Mates
1 - 101.0000.100AcmeLHSteelSquare1.7500.0001.00089645Mates
1 - 101.0000.100AcmeLHSteelHex1.6250.0001.00089646Mates
1 - 81.0000.125AcmeRHSteelHex1.6250.0001.00091506Mates
1 - 81.0000.125AcmeLHSteelHex1.6250.0001.00091507Mates
1 - 81.0000.125AcmeRHSteelRound0.0001.7501.00091508Mates
1 - 81.0000.125AcmeLHSteelRound0.0001.7501.00091509Mates
1 - 81.0000.125AcmeRHSteelSquare1.7500.0001.00091510Mates
1 - 81.0000.125AcmeLHSteelSquare1.7500.0001.00091511Mates
1 - 61.0000.167AcmeRHSteelHex1.6250.0001.00090114Mates
1 - 61.0000.167AcmeLHSteelHex1.6250.0001.00090115Mates
1 - 61.0000.167AcmeRHSteelRound0.0001.7501.00090120Mates
1 - 61.0000.167AcmeLHSteelRound0.0001.7501.00090121Mates
1 - 61.0000.167AcmeRHSteelSquare1.7500.0001.00090122Mates
1 - 61.0000.167AcmeLHSteelSquare1.7500.0001.00090123Mates
1 - 51.0000.200AcmeRHSteelRound0.0001.7501.00089420Mates
1 - 51.0000.200AcmeRHSteelSquare1.7500.0001.00089421Mates
1 - 51.0000.200AcmeRHSteelHex1.6250.0001.00089422Mates
1 - 51.0000.200AcmeLHSteelRound0.0001.7501.00089483Mates
1 - 51.0000.200AcmeLHSteelSquare1.7500.0001.00089484Mates
1 - 51.0000.200AcmeLHSteelHex1.6250.0001.00089485Mates
1 - 51.0000.200AcmeRHStainless SteelHex1.6250.0001.00090436Mates
1 - 51.0000.200AcmeLHStainless SteelHex1.6250.0001.00090437Mates
1 - 41.0000.250AcmeRHSteelHex1.6250.0001.00091126Mates
1 - 41.0000.250AcmeLHSteelHex1.6250.0001.00091127Mates
1 - 41.0000.250AcmeRHSteelRound0.0001.7501.00091128Mates
1 - 41.0000.250AcmeRHStainless SteelHex1.6250.0001.00091348Mates
1 - 41.0000.250AcmeLHStainless SteelHex1.6250.0001.00091349Mates
1 1/8 - 51.1250.200AcmeRHSteelHex1.8130.0001.12590422Mates
1 1/8 - 51.1250.200AcmeLHSteelHex1.8130.0001.12590423Mates
1 1/4 - 51.2500.200AcmeRHSteelRound0.0002.0001.25089560Mates
1 1/4 - 51.2500.200AcmeRHSteelSquare2.0000.0001.25089561Mates
1 1/4 - 51.2500.200AcmeRHSteelHex2.0000.0001.25089562Mates
1 1/4 - 51.2500.200AcmeLHSteelRound0.0002.0001.25089565Mates
1 1/4 - 51.2500.200AcmeLHSteelSquare2.0000.0001.25089566Mates
1 1/4 - 51.2500.200AcmeLHSteelHex2.0000.0001.25089567Mates
1 1/4 - 51.2500.200AcmeRHStainless SteelHex2.0000.0001.25090438Mates
1 1/4 - 41.2500.250AcmeRHSteelHex2.0000.0001.25090187Mates
1 3/8 - 41.3750.250AcmeRHSteelRound0.0002.2501.37589575Mates
1 3/8 - 41.3750.250AcmeRHSteelSquare2.2500.0001.37589576Mates
1 3/8 - 41.3750.250AcmeRHSteelHex2.1880.0001.37589577Mates
1 3/8 - 41.3750.250AcmeLHSteelRound0.0002.2501.37589580Mates
1 3/8 - 41.3750.250AcmeLHSteelSquare2.2500.0001.37589581Mates
1 3/8 - 41.3750.250AcmeLHSteelHex2.2500.0001.37589582Mates
1 1/2 - 51.5000.200AcmeRHSteelHex2.3750.0001.50091652Mates
1 1/2 - 41.5000.250AcmeRHSteelRound0.0002.5001.50089424Mates
1 1/2 - 41.5000.250AcmeRHSteelSquare2.5000.0001.50089425Mates
1 1/2 - 41.5000.250AcmeRHSteelHex2.3750.0001.50089426Mates
1 1/2 - 41.5000.250AcmeLHSteelRound0.0002.3751.50089488Mates
1 1/2 - 41.5000.250AcmeLHSteelSquare2.5000.0001.50089489Mates
1 1/2 - 41.5000.250AcmeLHSteelHex2.3750.0001.50089490Mates
1 1/2 - 41.5000.250AcmeRHStainless SteelHex2.2500.0001.50090440Mates
1 1/2 - 2 2/3 STUB1.5000.375AcmeRHSteelHex2.3750.0001.50091354Mates
1 3/4 - 41.7500.250AcmeRHSteelRound0.0002.7501.75089544Mates
1 3/4 - 41.7500.250AcmeRHSteelSquare2.7500.0001.75089545Mates
1 3/4 - 41.7500.250AcmeRHSteelHex2.7500.0001.75089546Mates
1 3/4 - 41.7500.250AcmeLHSteelRound0.0002.7501.75089549Mates
1 3/4 - 41.7500.250AcmeLHSteelSquare2.7500.0001.75089550Mates
1 3/4 - 41.7500.250AcmeRHStainless SteelHex2.7500.0001.75092410Mates
1 3/4 - 31.7500.333AcmeRHSteelRound0.0002.7501.75089785Mates
1 3/4 - 31.7500.333AcmeRHSteelSquare2.7500.0001.75089786Mates
1 3/4 - 31.7500.333AcmeRHSteelHex2.7500.0001.75089787Mates
2 - 42.0000.250AcmeRHSteelRound0.0003.2502.00089435Mates
2 - 42.0000.250AcmeRHSteelHex3.0000.0002.00089436Mates
2 - 42.0000.250AcmeRHSteelSquare3.2500.0002.00089437Mates
2 - 42.0000.250AcmeLHSteelRound0.0003.2502.00089506Mates
2 - 42.0000.250AcmeLHSteelSquare3.2500.0002.00089507Mates
2 - 42.0000.250AcmeLHSteelHex3.0000.0002.00089508Mates
2 - 42.0000.250AcmeRHStainless SteelHex3.0000.0002.00090442Mates
2 - 32.0000.333AcmeRHSteelHex3.1250.0002.00090366Mates
2 1/4 - 42.2500.250AcmeRHSteelHex3.5000.0002.25090394Mates
2 1/4 - 42.2500.250AcmeLHSteelHex3.5000.0002.25090395Mates
2 1/4 - 42.2500.250AcmeRHSteelRound0.0003.5002.25090396Mates
2 1/4 - 42.2500.250AcmeLHSteelRound0.0003.5002.25090397Mates
2 1/2 - 42.5000.250AcmeRHSteelHex3.8750.0002.50090084Mates
2 1/2 - 42.5000.250AcmeLHSteelHex3.8750.0002.50090373Mates
3 - 43.0000.250AcmeRHSteelRound0.0004.7503.00090386Mates
3 - 43.0000.250AcmeRHSteelHex4.6250.0003.00090388Mates
3 - 33.0000.333AcmeRHSteelRound0.0005.2503.00090110Mates
3 - 23.0000.500AcmeRHSteelRound0.0005.2503.00091766Mates
