- Product Line: Acme
- Major Diameter: 1" (in.)
- Threads Per Inch: 6 (Threads/in.)
- Number of Starts: 1
- Lead: 0.167 (in./rev.)
- Effective Threads Per Inch: (Effective TPI)
- Hand: Right Hand Click for left hand
Showing all 10 results
-
Acme Lead Screw, 1 – 6, RH, Steel
Part Number: 60254Price: $13.63 /ft.Add to cart- Size: 1 - 6 Acme
- Hand: Right Hand Click for left hand
- Screw Weight: 2.180(lbs./ft.)
-
Acme Lead Screw, 1 – 6, RH, Stainless Steel
Part Number: 61198Price: $44.68 /ft.Add to cart- Size: 1 - 6 Acme
- Hand: Right Hand Click for left hand
- Screw Weight: 2.180(lbs./ft.)
-
Acme Sleeve Nut, 1 – 6, RH, Bronze
Part Number: 90116Price: $43.03 /ea.Add to cart- Size: 1 - 6 Acme
- Hand: Right Hand Click for left hand
- Operating Load Rating: 5,000 (lbs.)
- Static Load Rating: 16,000 (lbs.)
-

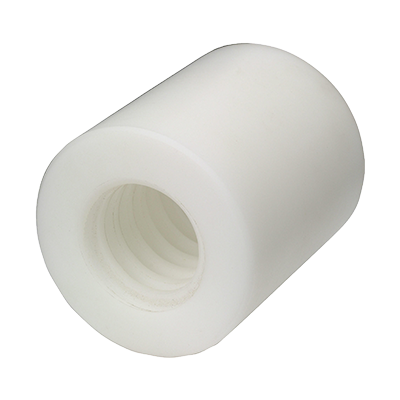

Acme Sleeve Nut, 1 – 6, RH, Plastic
Part Number: 90118Price: $38.65 /ea.Add to cart- Size: 1 - 6 Acme
- Hand: Right Hand Click for left hand
- Operating Load Rating: 2,500 (lbs.)
- Static Load Rating: 4,000 (lbs.)
-
Acme Threaded Mount Nut, 1 – 6, RH, Bronze
Part Number: 90264Price: $47.16 /ea.Add to cart- Size: 1 - 6 Acme
- Hand: Right Hand Click for left hand
- Operating Load Rating: 5,000 (lbs.)
- Static Load Rating: 16,000 (lbs.)
-
Acme Threaded Mount Nut, 1 – 6, RH, Plastic
Part Number: 91094Price: $42.36 /ea.Add to cart- Size: 1 - 6 Acme
- Hand: Right Hand Click for left hand
- Operating Load Rating: 2,500 (lbs.)
- Static Load Rating: 4,000 (lbs.)
-
Acme Hex Nut, 1 – 6, RH, Steel
Part Number: 90114Price: $7.26 /ea.Add to cart- Size: 1 - 6 Acme
- Hand: Right Hand Click for left hand
- Static Load Rating: 24,000 (lbs.)
-
Acme Round Nut, 1 – 6, RH, Steel
Part Number: 90120Price: $11.39 /ea.Add to cart- Size: 1 - 6 Acme
- Hand: Right Hand Click for left hand
- Static Load Rating: 24,000 (lbs.)
-
Acme Square Nut, 1 – 6, RH, Steel
Part Number: 90122Price: $11.64 /ea.Add to cart- Size: 1 - 6 Acme
- Hand: Right Hand Click for left hand
- Static Load Rating: 24,000 (lbs.)
-
Acme Speed Ball Wing Nut, 1 – 6, RH, Cast Iron
Part Number: 91528Price: $39.55 /ea.Add to cart- Size: 1 - 6 Acme
- Hand: Right Hand Click for left hand
- Operating Load Rating: 2,500 (lbs.)
- Static Load Rating: 6,000 (lbs.)
-
Flange, 1.375 – 16 UN, Steel
Part Number: 90083Price: $50.67 /ea.Add to cart- Size: 1 - 6 Acme
- Hand: Right Hand Click for left hand
